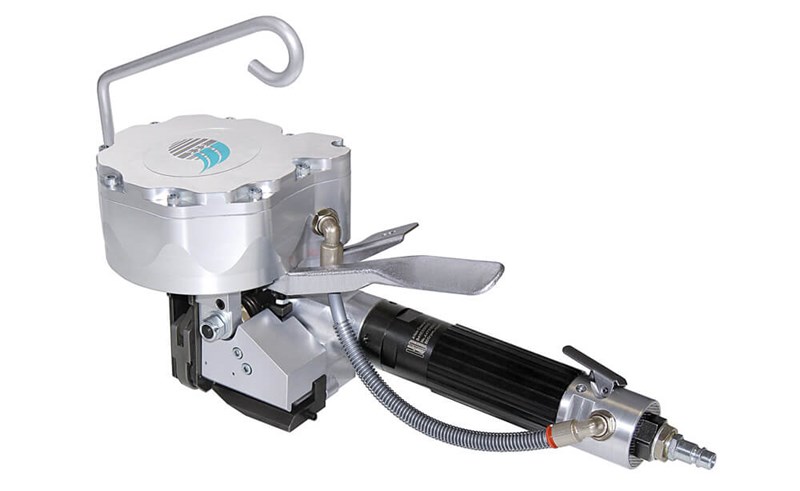

Pneumatic strapping steel ITA40 (40-271)
ITA 41 (41-271) is the combined pneumatic strapping tool for 16mm - 19mm steel straps.
The tool is equipped with 2 operating buttons, to allow an Automatic tensioning of Your steel strap.
ITA 40 (40-271) is available in two motor versions 7500N to provide the most suitable and adjustable tension for Your application.
Easy to be used, ITA 40 (40-271)is already equipped with its suspension hook to grant a lighter operation mode and to arrange a perfect double notch seal joint.
Powerful, quick and strong,ITA 40 (40-271) is manufactured to be durable and with very low maintenance required.
TECHNICAL SPECIFICATION
Dimensions 350 x 140 x 170 mm Weight 4 Kg
POWER SUPPLY
Pressure Range 5.5 - 7 bar (78 - 99 psi) Air Consumption 12 L/s - 25 cuft/min
PERFORMANCE
Max. tension force 2000N / 5500N / 7500N (6 bar - 87psi)
Tensioning Speed 12 mt/min (2000N) 5 mt/min (5500N) 4 mt/min (7500N)
Sealing Seal Single Notch Joint Strenght 75% of breaking strenght
* * variable according to strap type
MODEL CODE DESCRIPTION
ITA 40 - 19mm Steel - 7500N
STRAP Type Steel Strap - regular & high tensile
Width 13mm / 16mm / 19mm
Thickness 0,4mm - 0,8mm
